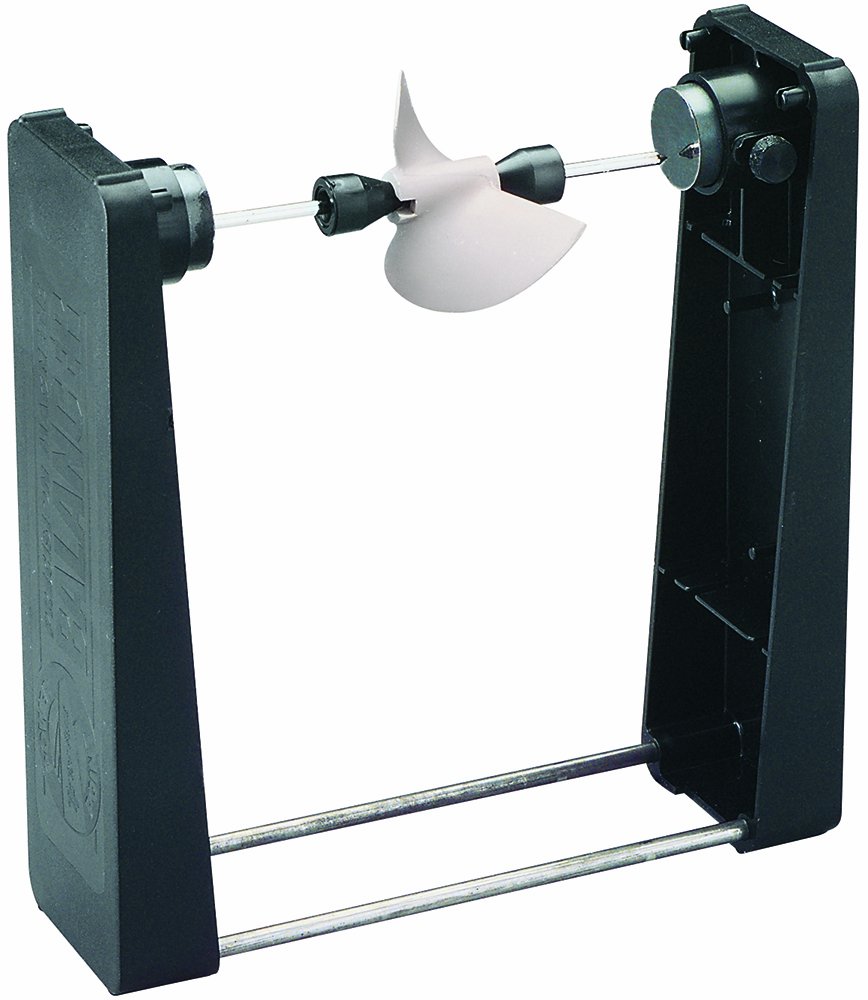

Mar 29, 2011 Du-Bro's Tru-Spin Prop Balancer is the most precise balancer on the market. Our NEW specially designed.

Both cones should go into the prop hub to ensure it is centralized (especially if, as it will be in most cases, the hub is bored larger than the shaft on the balancer!). Thin hubs are a problem though - you may need to add a nylon washer or two to effectively 'thicken' the hub, so that the two cones don't meet in the middle! My Top Flite magnetic works just fine even with heavy 13' APC E props! Kiwi: Thanks for the reply. I thought both the cones should go in but because of the hole size they were a sloppy fit.

Your suggestion about the nylon washer is a great idea and I will do that. That's a 17' prop in the pictures and I tried it on a friends Top Flite balancer and it was too heavy. Maybe the newer ones have more strength. Thanks again, Ed. Either way you have it should be fine, if the hub isn't thick enough that is how I do it. Putting a washer in the front of it then putting the cone in that wouldn't be any different than turning one of the cones backwards as it will still be sitting flat on the face of the prop and getting the reading from there.

Steve: I was able to use one of the adapter rings that comes with the APC prop which had a smaller hole. That way it fit iside the prop and the cone doesn't bottom out any more when you put it in. Since I've done this, the heavy side has stopped at the almost identical position 6 times in a row so I feel comfortable that I'm getting a consistent reading. Now I can balance it with a little more confidence in the fact that it is accurate. Which is the correct way to attach the two balancing cones? Prop1 or Prop2, or doesn't it make a difference?

OR What balancer do you recommend? Don't tell me the one with magnets becuse they're too weak to work with the bigger props. Thanks, Ed I cant see anything wrong in the way you have it set up apart that you may wish to rotate the disc holder closest to the prop 180 degrees so it is as close to the prop as possible in case there is any flex in the shaft and make sure the shaft is dead level.imho.

Were you not getting a good reading with one of the cones turned around? Putting the smaller diameter ring in the prop, like you did, so the cone didn't go quite as far in would work the best if its possible, some are just too thin though for that to work. If you look at the instructions that came with the Dubro balancer it shows to turn one of them around when balancing a spinner as a backplate on a spinner is not thick enough to put the cones together just like the thinner prop.

Steve: I saw the pictures on the package when I bought the balancer. I wasn't getting consistent readings. If I checked it 5 times, the prop wouldn't settle in the same position twice. Download Free Angelo Badalamenti Twin Peaks Rarity. The new method seems to be working great. Edkos, for props up to 24' dia.(5/8 ' shaft hole) up to 1/4lb weight, i use the pocket size Top Flight 'power point' precision magnetic balancer.

For big heli rotors i just clamp a couple junk alnico woofer magnets aross from each other on saw horse,(basically a 2x4 with legs). The trick is to fill the shaft hole with a ferrous (magnetically conductive) metal, like iron. The more the crossectional area, and the less the length, the more mass a magnetic field in the shaft will support against gravity. And remember to keep the shaft from touching both magnets.

Its point on one end offers little friction against magnet, and the other end no friction, as the weight is being supported by flux field channeled thru the ferrous shaft (not a ferrous hairpin with rubber cones). Keep the gap on the open end as small as possible without touching. It doesen't matter which point on which end of shaft, front or back of prop, top or bottom of rotor, is the one touching, just not both at the same time. Both cones should go into the prop hub to ensure it is centralized (especially if, as it will be in most cases, the hub is bored larger than the shaft on the balancer!). Thin hubs are a problem though - you may need to add a nylon washer or two to effectively 'thicken' the hub, so that the two cones don't meet in the middle!

My Top Flite magnetic works just fine even with heavy 13' APC E props! Sorry, I don't follow how this could work. I agree with Steve H that this just effectively turns the two cones pointing towards each other into the setup pictured in post #1. You still have the valid question of which side of the prop gets the pointy end cone and which side gets the 'slidy' flat non-centered connection. Pic #1 is correct, at least for APC style props. The APC website has instructions on this, and indicates that the larger hole in back of the hub (the one that accepts the rings) is a precision milled /centered hole.

Hcl M6220 Web Camera Driver For Windows 7. From the front of the hub, that smaller hole is just molded in and may NOT be on the same axis as the rear hole. Thus pointing both cones in could put the prop at a very slight off-axis angle. It all depends on which hole the front cone contacts, and whether the two different diameter holes are exactly on axis.
